TC7015 Flat-Top Tower Crane

Name: TC7015 Flat-Top Tower Crane
SKU: ZN-TC-7015

70 m jib, 10 t maximum load and 1.5 t at the tip. A large flat-top crane for super-high-rise, stadium and infrastructure projects.

Request a technical proposal

Key specifications

Model: TC7015
Max load: 10 t
Tip load: 1.5 t
Jib length: 70 m
Free-standing height: 50 m
Max attached height: 200 m
Mast section: 2.0 x 2.0 x 3.0 m
Hoist speed: 0-100 m/min
Slewing speed: 0.6 r/min
Trolley speed: 0-45 m/min
Power supply: 380 V / 50 Hz / 3 phase
Control: VFD + PLC, cab or remote
Equivalent QTZ: QTZ160

Application overview

Specified around the application

Overview

The TC7015 is a large flat-top tower crane with a 70 m jib, 10 t maximum load and 1.5 t tip load. It is intended for super-high-rise, stadium and infrastructure work where a long radius and heavy hoist capacity are both required.

Key features

70 m jib with 1.5 t tip load for long-reach coverage.
10 t maximum load and heavy-duty hoist for large components.
2.0 x 2.0 x 3.0 m mast sections for tall climbing configurations.
VFD drives and PLC control with multi-step braking.
Full safety package including moment, zone and wind protection.

Typical applications

Super-high-rise and large commercial complexes.
Stadiums, airports and public buildings.
Bridges, plants and infrastructure projects.

Configuration and delivery

Jib length, foundation frame and wall-tie arrangement are configured per project. The crane is supplied with erection drawings, load charts, inspection documents and a spare-parts list, packed for container or flat-rack transport.

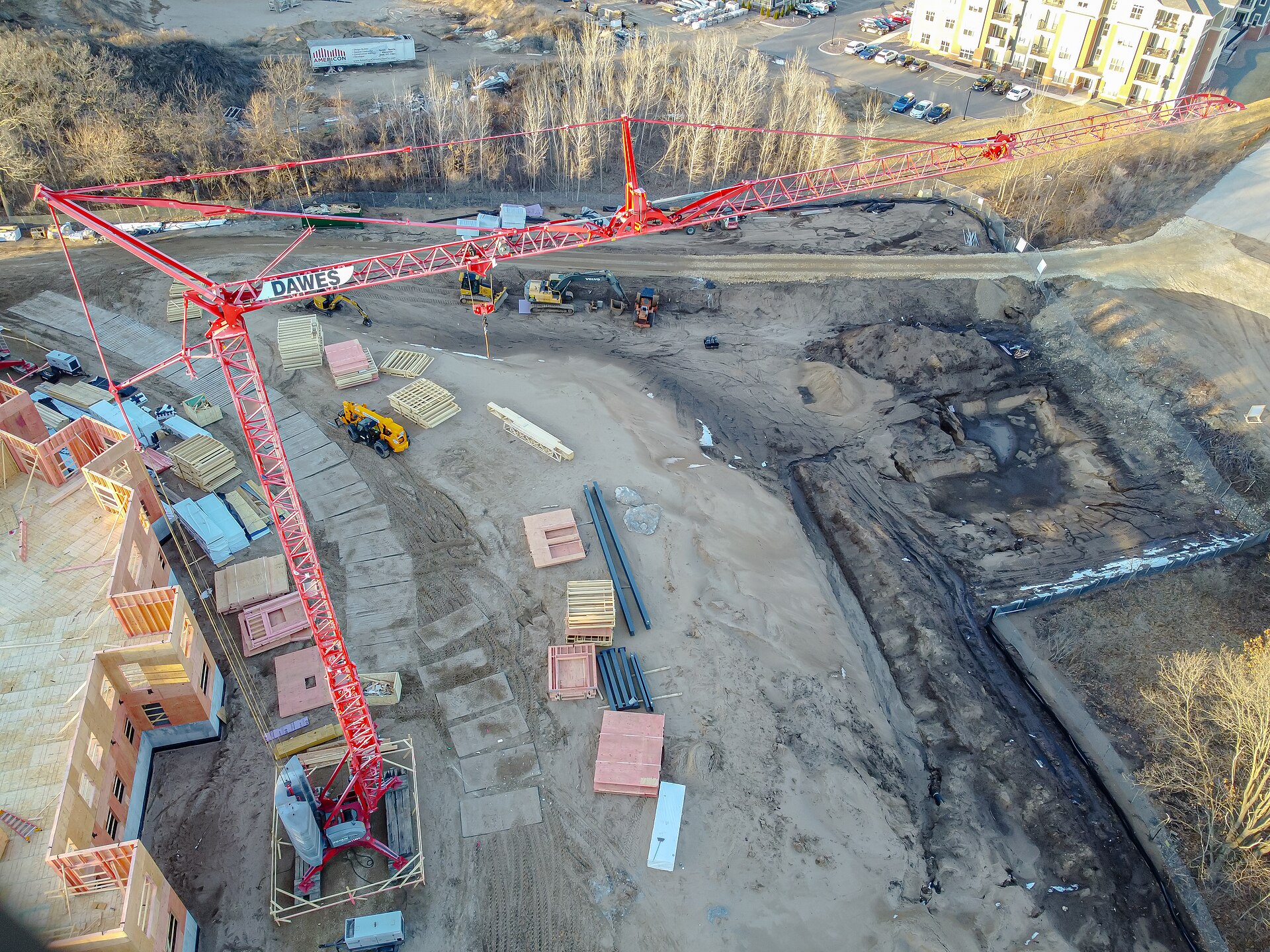

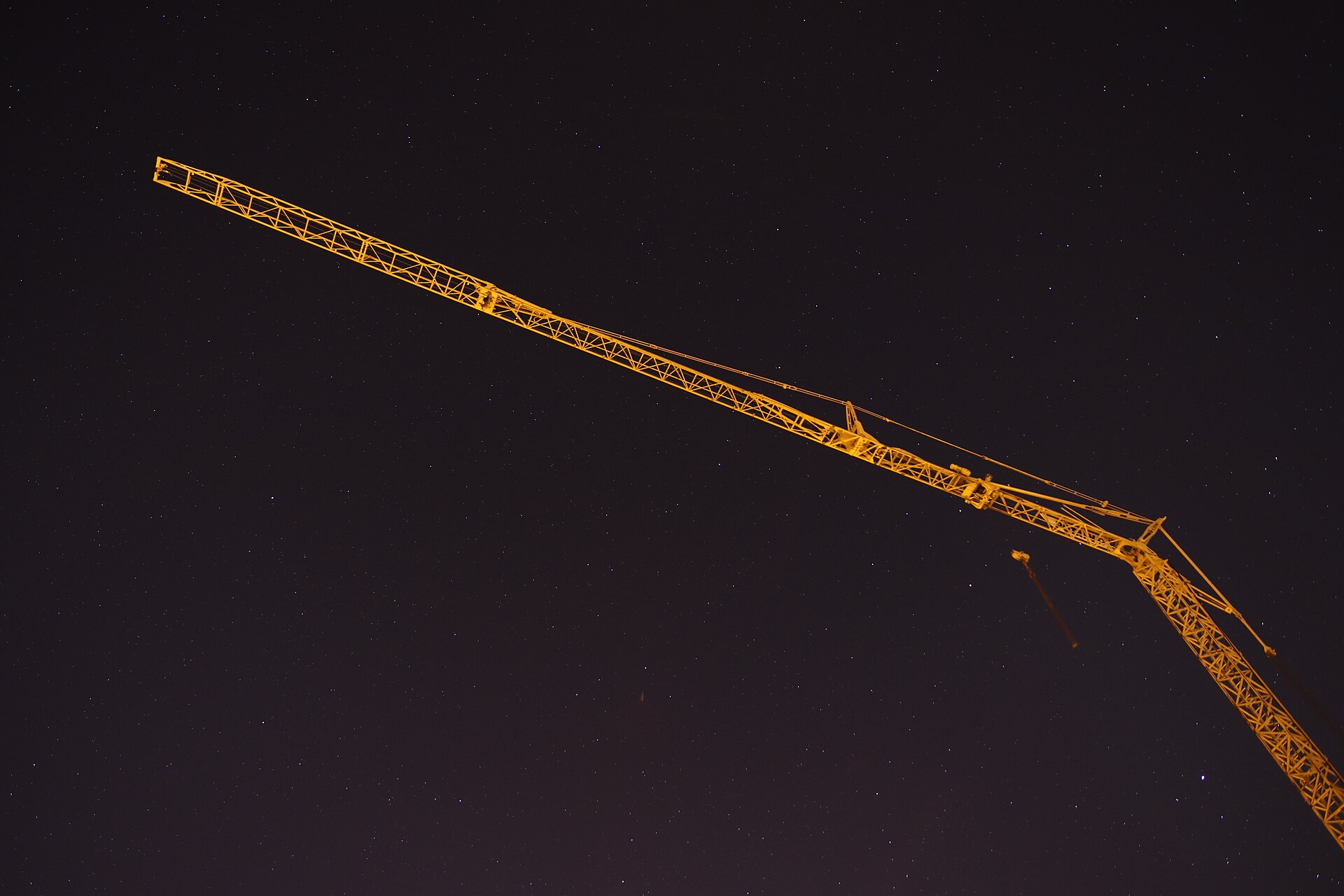

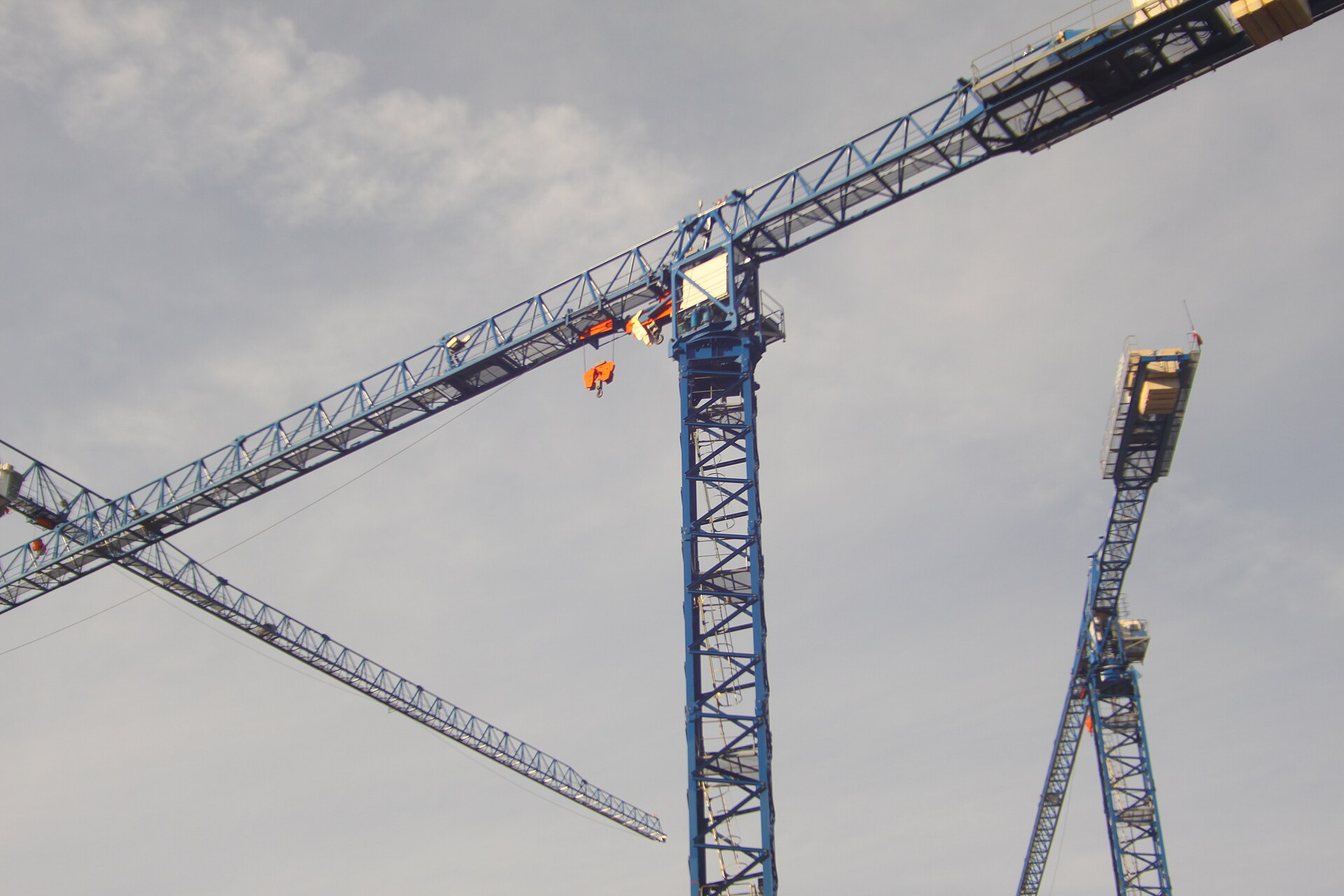

Product gallery
